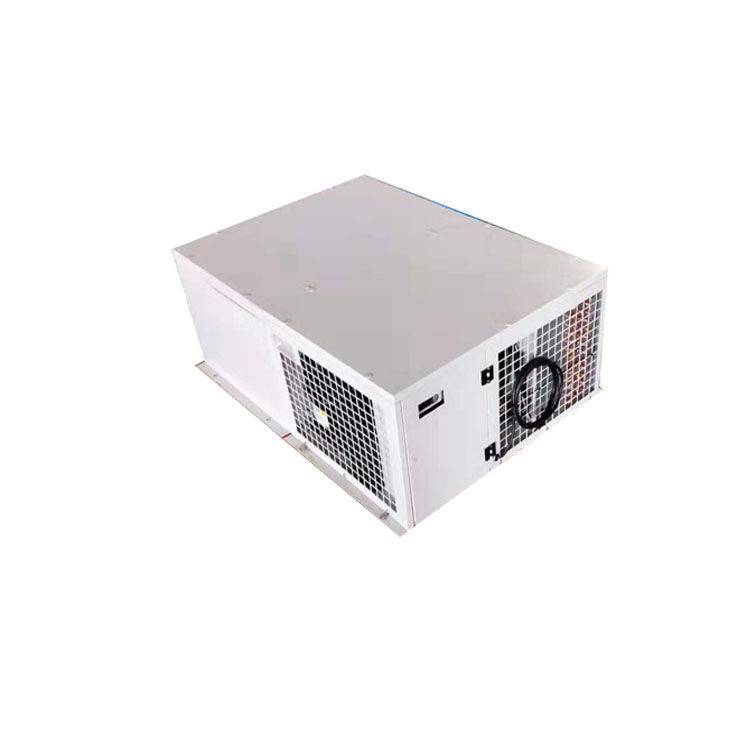

Roof Mounted Monoblock Refrigeration Unit
Product Introduction
Both the roof mounted monoblock and wall mounted monoblock refrigeration unit have exactly the same performance but offer different installation locations.
The roof mounted unit works very well where the internal space of the room is limited because it does not occupy any space inside.
The evaporator box is formed by Polyurethane foaming and has very good thermal insulation properties.
The design of the system is weather proof which means it can be situated outside if required.
The condenser is designed to handle harsh ambient temperatures above 45 °C.
Technical Parameters
Main system configuration | |
| Inverter compressor | Sanyo(Japan brand) |
| Variable frequency driver | Zhouju(Chinese brand) |
| Control Board | Carel(Italian brand) |
| Electronic expansion valve | Carel(Italian brand) |
| Pressure Sensor | Carel(Italian brand) |
| Temperature Sensor | Carel(Italian brand) |
| Liquid crystal display controller | Carel(Italian brand) |
| DC fan | Jingma(Chinese brand) |
| Sight glass | Danfoss(Denmark brand) |
| Liquid receiver | HPEOK(Chinese brand) |
| Suction accumulator | HPEOK(Chinese brand) |
Main Characteristics And Advantages Of Our Full DC Inverter Monoblock
* Easy to install reducing installation costs;
* Slimline design making it compact for tight areas;
* Available in 1.5Hp and 3Hp;
* System powered by a combination of AC and DC;
* User friendly English display, enabling easy navigation and setting of parameters;
* Multiple protection functions such as: High and low voltage, High and low Pressure;
* The operating frequency of the compressor varies between 15-120 hz;
* The system has inbuilt temperature set points allowing the frequency of the compressor to reduce as the temperature of the room arrives closer to its set point or increase as the demand increases making it very energy efficient;
* Accurate temperature control and minimal temperature fluctuation range;
* Supports advanced LOT platform for remote monitoring;
* Optional system configurations including:
*Grid
*Grid/solar
*Off grid
*Full remote monitoring and control with SMART ROOM function

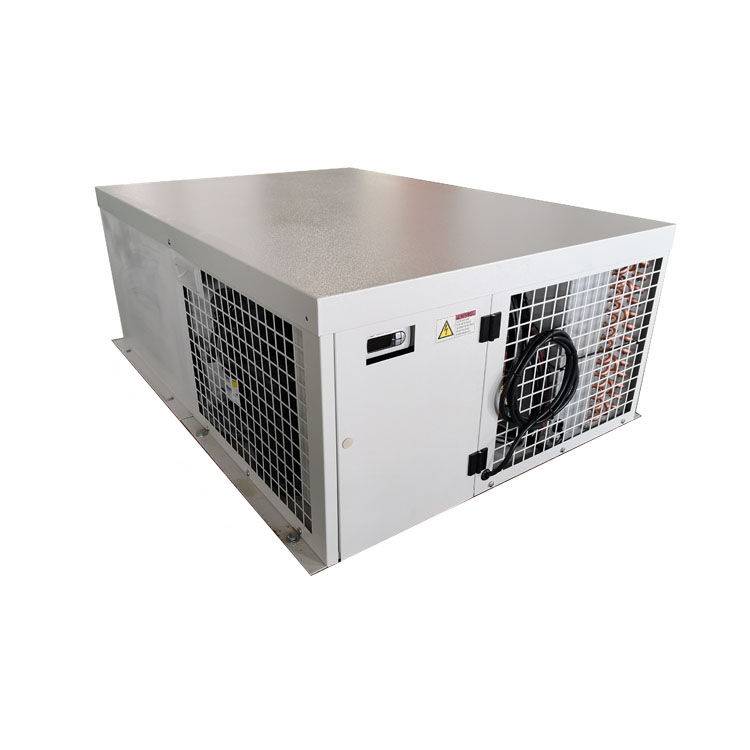

More Detail Pictures
Product Usage Plan
(1) 10m3 size on grid solar cold room system standard configuration
| Equipment details | Quantity |
| 10m3 cold room(2.5m*2m*2m) | 1 |
| 1.5HP Full DC inverter monoblock | 1 |
| Intelligent solar power module | 1 |
| Polycrystalline solar panel (300W) | 4 |
| Other accessories (solar panel mounting brackets, connecting cables) are actually calculated |
10m3 on grid solar cold room system connection diagram
(2) 10m3 size off grid solar cold room system standard configuration
| Equipment details | Quantity |
| 10m3 cold room(2.5m*2m*2m) | 1 |
| 1.5HP Full DC inverter monoblock | 1 |
| Smart box | 1 |
| Polycrystalline solar panel (300W) | 8 |
| Battery (12V100AH) | 4 |
| Battery cabinet (4 sections) | 1 |
| Other accessories (solar panel mounting brackets, connecting cables) are actually calculated |
10m3 off grid solar cold room system connection diagram
